Setting Up Performance & Error Monitoring

The holiday season is approaching. Traffic is about to spike. Let’s get Sentry instrumented so you can monitor performance, catch errors, and keep your e-commerce site running smoothly when it matters most.

Learning Objectives

By the end of this module, you will:

• Configure Error Monitoring for both frontend and backend
• Set up Sentry Performance Monitoring with Web Vitals tracking (LCP, CLS, FCP, TTFB, INP)
• Enable Session Replays to debug user interactions visually
• Enable structured logging to capture console logs alongside traces and errors
• Implement distributed tracing to track requests across services
• Integrate React Router v6 for parameterized route tracking
• Understand sample rates and when to adjust them for production

What is Sentry?

Sentry is a comprehensive application monitoring platform that helps developers identify, debug, and resolve performance issues and errors before they impact users. Key features for e-commerce applications include:

• Error Monitoring: Automatic error detection with stack traces and context
• Performance Monitoring: Track Web Vitals (LCP, CLS, FCP, TTFB, INP) and custom performance metrics
• Session Replays: Visual recordings of user sessions to understand checkout failures
• Distributed Tracing: Follow requests from frontend through backend to database
• Structured Logging: Capture and correlate logs with traces and errors for complete context

Why Performance Monitoring Matters for E-commerce

During peak traffic periods (Black Friday, holiday sales), even small performance degradations can significantly impact conversion rates. Studies show that a 1-second delay in page load time can reduce conversions by 7%. Sentry helps you catch and fix these issues proactively.

Sentry automatically captures five key Web Vitals metrics (LCP, CLS, FCP, TTFB, INP) that measure how users experience your site. You’ll learn what these metrics mean and how to optimize them in the next module. For now, let’s focus on getting Sentry instrumented and data flowing.

Before You Begin

Make sure you have two Sentry projects created:

1. Frontend Project: Select “React” as the platform
2. Backend Project: Select “Express” as the platform

Save both DSN values - you’ll need them in the next steps.

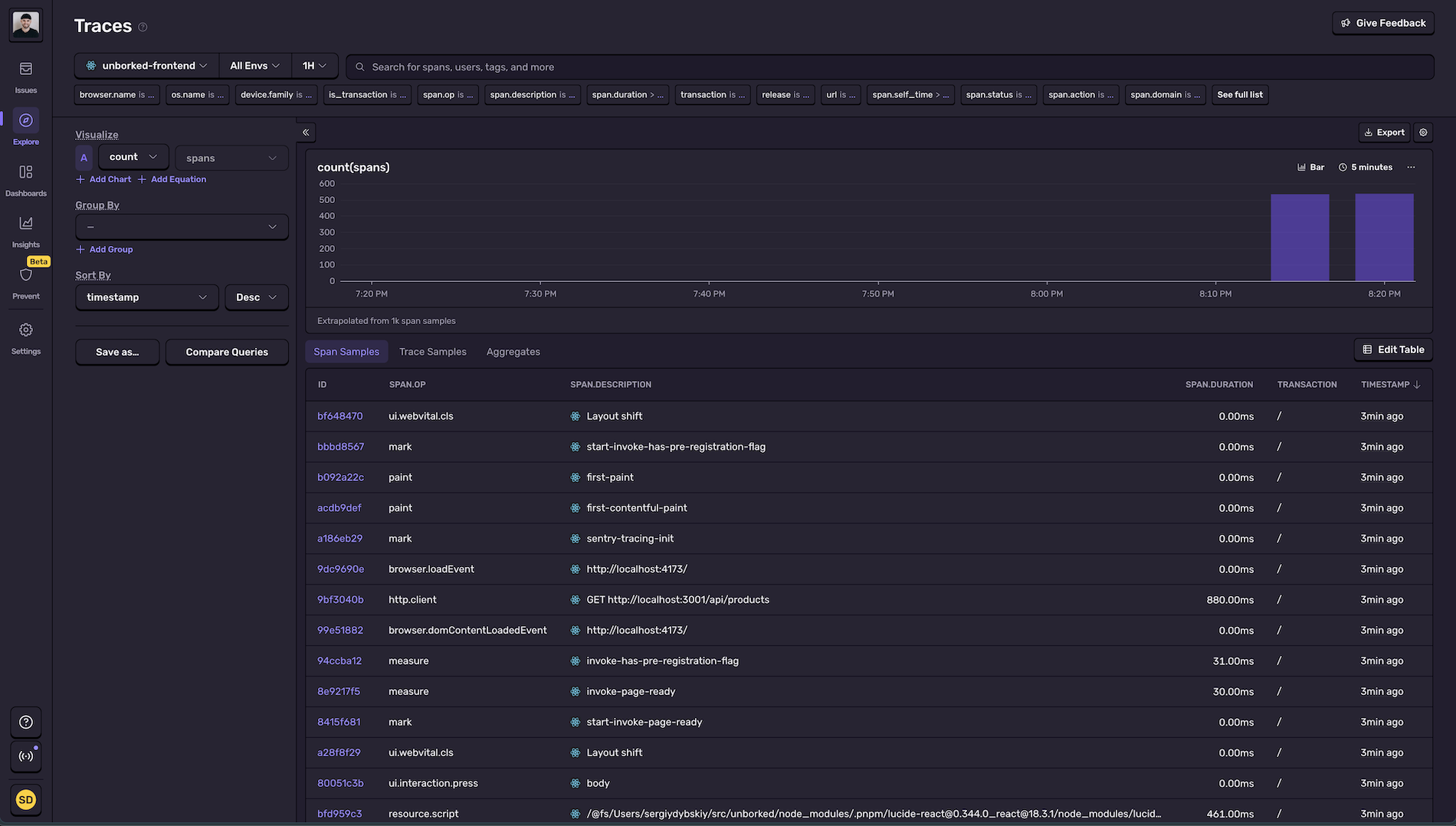

Instrumenting Your Frontend (React)

1. Install Sentry’s React SDK

   From the root of your unborked repository:

   Installing the Sentry React SDK

   pnpm add @sentry/react --filter web

2. Create the instrumentation file with React Router v6 integration

   Create apps/web/src/instrument.ts:

   instrument.ts

   import * as Sentry from '@sentry/react';
   import { useEffect } from 'react';
   import {
     useLocation,
     useNavigationType,
     createRoutesFromChildren,
     matchRoutes,
   } from 'react-router-dom';

   Sentry.init({
     dsn: import.meta.env.VITE_SENTRY_DSN,

     enableLogs: true,
     integrations: [
       // React Router v6 integration for automatic route tracking
       // Captures all 5 Web Vitals: LCP, CLS, FCP, TTFB, INP
       Sentry.reactRouterV6BrowserTracingIntegration({
         useEffect,
         useLocation,
         useNavigationType,
         createRoutesFromChildren,
         matchRoutes,
         // Performance monitoring options
         idleTimeout: 10000, // Wait 10 seconds for additional requests (default: 1000ms)
         _experiments: {
           enableStandaloneLcpSpans: true, // LCP: Largest Contentful Paint
           enableStandaloneClsSpans: true, // CLS: Cumulative Layout Shift (can happen after pageload)
         },
       }),

       Sentry.consoleLoggingIntegration({ levels: ['log', 'warn', 'error'] }),

       // Session Replay for debugging user interactions
       Sentry.replayIntegration({
         maskAllText: false,
         maskAllInputs: true,
         blockAllMedia: false,
       }),
     ],

     // Performance Monitoring
     tracesSampleRate: 1.0, // 100% in dev (reduce to 0.1-0.3 in production)

     // Distributed tracing - connect frontend to backend
     tracePropagationTargets: [import.meta.env.VITE_API_BASE_URL],

     // Session Replay sampling
     replaysSessionSampleRate: 0.1, // 10% of sessions
     replaysOnErrorSampleRate: 1.0, // 100% of errors

     sendDefaultPii: true,
     environment: import.meta.env.MODE,
   });

   Sample Rate Best Practices

   • tracesSampleRate: Start with 1.0 (100%) during development. In production, use 0.1-0.3 (10-30%) to manage costs while maintaining visibility.
   • replaysSessionSampleRate: Keep low (0.1 = 10%) to capture representative samples without excessive storage costs.
   • replaysOnErrorSampleRate: Keep at 1.0 (100%) to always capture context when errors occur.

   React Router v6 Integration

   We’re using reactRouterV6BrowserTracingIntegration instead of the generic browserTracingIntegration to get deeper React Router insights:

   • Parameterized routes: Groups similar routes (like /products/:id) instead of treating each product page as separate
   • Web Vitals tracking: Automatically captures LCP, CLS, FCP, TTFB, and INP for each route
   • Navigation performance: Tracks route changes and transitions

   The idleTimeout: 10000 waits 10 seconds after navigation to capture all related requests in a single transaction. The experimental standalone spans allow tracking LCP and CLS even when they occur after initial pageload.

3. Create an error boundary component

   Create apps/web/src/components/ErrorBoundary.tsx:

   ErrorBoundary.tsx

   import * as Sentry from '@sentry/react';
   import { useRouteError, isRouteErrorResponse } from 'react-router-dom';
   import { useEffect } from 'react';

   export default function ErrorBoundary() {
     const error = useRouteError();

     useEffect(() => {
       // Send route errors to Sentry
       if (error) {
         Sentry.captureException(error);
       }
     }, [error]);

     if (isRouteErrorResponse(error)) {
       return (
         <div className="min-h-screen flex items-center justify-center bg-gray-50">
           <div className="text-center">
             <h1 className="text-4xl font-bold text-red-600 mb-4">
               {error.status}
             </h1>
             <p className="text-xl text-gray-600 mb-4">{error.statusText}</p>
             <p className="text-gray-500">{error.data}</p>
           </div>
         </div>
       );
     }

     return (
       <div className="min-h-screen flex items-center justify-center bg-gray-50">
         <div className="text-center">
           <h1 className="text-2xl font-bold text-red-600 mb-4">
             Something went wrong
           </h1>
           <p className="text-gray-600 mb-4">
             {error instanceof Error ? error.message : 'Unknown error occurred'}
           </p>
           <button
             onClick={() => window.location.reload()}
             className="px-4 py-2 bg-blue-600 text-white rounded hover:bg-blue-700"
           >
             Reload page
           </button>
         </div>
       </div>
     );
   }

   Error Boundaries in Production

   In production, React Router only re-throws errors in development mode with Strict Mode enabled. This error boundary ensures all routing errors are captured and sent to Sentry in production.

4. Import instrumentation in main.tsx

   Add this import at the very top of apps/web/src/main.tsx:

   main.tsx

   // This MUST be the first import!
   import './instrument';

   import { createRoot } from 'react-dom/client';
   import * as Sentry from '@sentry/react';

   import App from './App.tsx';
   import './index.css';

   createRoot(document.getElementById('root')!, {
     onRecoverableError: Sentry.reactErrorHandler(),
   }).render(<App />);

   Import Order Matters

   The instrument file must be imported first to capture all errors and performance data from the start.

5. Wrap your Routes component with Sentry

   Update apps/web/src/App.tsx to wrap your <Routes> component:

   App.tsx

   import { BrowserRouter, Routes, Route } from 'react-router-dom';
   import * as Sentry from '@sentry/react';
   import { CartProvider } from './context/CartContext';
   import { AuthProvider } from './context/AuthContext';

   import ErrorBoundary from './components/ErrorBoundary';
   import Home from './pages/Home';
   import Cart from './pages/Cart';
   import Login from './pages/Login';
   import Register from './pages/Register';
   import ProductDetail from './pages/ProductDetail';
   import Shop from './pages/Shop';
   import Sale from './pages/Sale';

   // Create the Sentry-wrapped Routes component
   const SentryRoutes = Sentry.withSentryReactRouterV6Routing(Routes);

   function App() {
     return (
       <BrowserRouter>
         <AuthProvider>
           <CartProvider>
             <div className="min-h-screen bg-gray-100">
               <SentryRoutes>
                 <Route
                   path="/"
                   element={<Home />}
                   errorElement={<ErrorBoundary />}
                 />
                 <Route
                   path="/shop"
                   element={<Shop />}
                   errorElement={<ErrorBoundary />}
                 />
                 <Route
                   path="/sale"
                   element={<Sale />}
                   errorElement={<ErrorBoundary />}
                 />
                 <Route
                   path="/cart"
                   element={<Cart />}
                   errorElement={<ErrorBoundary />}
                 />
                 <Route
                   path="/login"
                   element={<Login />}
                   errorElement={<ErrorBoundary />}
                 />
                 <Route
                   path="/register"
                   element={<Register />}
                   errorElement={<ErrorBoundary />}
                 />
                 <Route
                   path="/product/:id"
                   element={<ProductDetail />}
                   errorElement={<ErrorBoundary />}
                 />
               </SentryRoutes>
             </div>
           </CartProvider>
         </AuthProvider>
       </BrowserRouter>
     );
   }

   export default App;

   Error Boundaries

   The errorElement prop on each route ensures that routing errors are captured and sent to Sentry, even in production where React would normally swallow them.

6. Add Sentry DSN to environment variables

   Open apps/web/.env and add your Sentry DSN (the file already has VITE_API_BASE_URL from the quickstart):

   Adding Sentry DSN to apps/web/.env

   VITE_SENTRY_DSN=<Your Frontend Sentry DSN>
   VITE_API_BASE_URL=http://localhost:3001

   Tip

   Copy your Frontend project’s DSN from Sentry → Settings → Projects → [Your Project] → Client Keys (DSN)

7. Set up sourcemaps with Sentry Wizard

   Sourcemaps help you debug minified production code:

   Setting up sourcemaps with Sentry Wizard

   cd apps/web
   pnpx @sentry/wizard@latest -i sourcemaps

   Follow the prompts:

   • Select Sentry SaaS
   • Choose your organization and frontend project
   • Select Vite as the bundler
   • Select PNPM as package manager
   • Select No for CI/CD

   This creates .env.sentry-build-plugin and updates vite.config.ts automatically.

   The Sentry Vite plugin doesn’t upload source maps in watch-mode/development-mode. You can now upload them to Sentry using the Vite build command:

   Building the frontend and uploading sourcemaps to Sentry

   pnpm build

   This will build your frontend and upload the sourcemaps to Sentry. We can now either use pnpm start or pnpm dev to start the development server. We will stick with pnpm dev for this workshop.

8. Annotate React Components

   Now that we have a Vite Sentry plugin, we can also extend it to bring in React component names to our traces for easier debugging. Edit vite.config.ts to add the following:

   vite.config.ts

   // ... rest of your vite.config.ts
   sentryVitePlugin({
      org: __YOUR_SENTRY_ORG__,
      project: __YOUR_SENTRY_PROJECT__,
      reactComponentAnnotation: {
        enabled: true,
      },
    }),
   // ... rest of your vite.config.ts

   React Component Annotation

   The reactComponentAnnotation feature adds component names to your Sentry traces, making it easier to identify which React components are causing performance issues. This does slightly increase bundle size, so you can disable it in production by setting enabled: false if needed.

9. Return to the root directory

   Navigate back to the root of your project:

   Navigating back to the root directory

   cd ../..

Track User Context with Sentry.setUser()

To associate errors and performance data with specific users, call Sentry.setUser() when users authenticate. This helps you understand which users are affected by issues.

Where to add it: In your AuthContext (apps/web/src/context/AuthContext.tsx), add these three changes:

AuthContext.tsx

// 1. Add import at the top
import * as Sentry from '@sentry/react';

// 2. Inside login function (after successful login):
localStorage.setItem('token', response.token);
localStorage.setItem('user', JSON.stringify(response.user));

Sentry.setUser({
  id: response.user.id,
  username: response.user.username,
});

// 3. Inside logout function:
localStorage.removeItem('user');

Sentry.setUser(null);

This context will appear in all errors, performance transactions, and session replays, making it easier to debug user-specific issues.

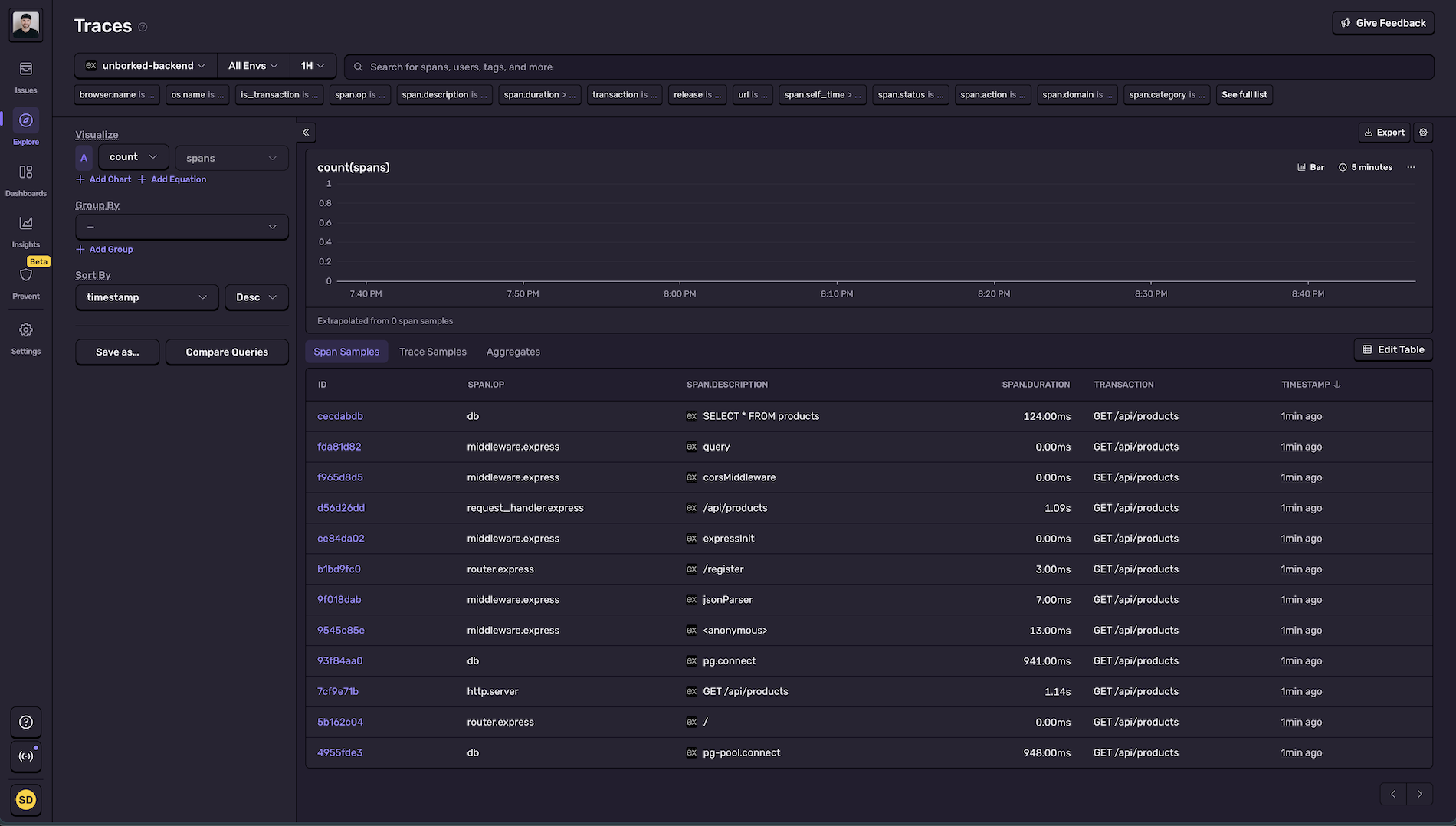

Instrumenting Your Backend (Express)

1. Install Sentry’s Node SDK

   Installing the Sentry Node SDK

   pnpm add @sentry/node --filter api

2. Create the instrumentation file

   Create apps/api/src/instrument.ts:

   instrument.ts

   import * as Sentry from '@sentry/node';

   Sentry.init({
     dsn: process.env.SENTRY_DSN,

     // Performance Monitoring
     tracesSampleRate: 1.0, // 100% in dev

     // Enable structured logging - captures console.log, console.error, etc.
     enableLogs: true,
     integrations: [
       Sentry.consoleLoggingIntegration({ levels: ['log', 'warn', 'error'] }),
     ],
     environment: process.env.NODE_ENV || 'development',
   });

   Structured Logging

   With enableLogs: true and the consoleLoggingIntegration, Sentry automatically captures all console.log(), console.error(), console.warn(), and other console statements. These logs are correlated with your traces and errors, giving you complete context when debugging issues. In Session Replays, you’ll see these logs in the console tab alongside the visual recording.

3. Import instrumentation in index.ts

   Update apps/api/src/index.ts with the complete instrumentation:

   index.ts

   // This MUST be the first import!
   import './instrument';

   import express from 'express';
   import * as Sentry from '@sentry/node';
   import cors from 'cors';
   import dotenv from 'dotenv';
   import routes from './routes';
   import { Request, Response, NextFunction } from 'express';

   dotenv.config();

   const app = express();

   const PORT = 3001;
   const FRONTEND_URL = process.env.FRONTEND_URL || 'http://localhost:4173';

   const corsOptions = {
     origin: [FRONTEND_URL],
     methods: ['GET', 'POST', 'PATCH', 'DELETE', 'OPTIONS'],
     allowedHeaders: [
       'Content-Type',
       'Authorization',
       'X-API-Key',
       'sentry-trace',
       'baggage',
     ],
     credentials: true,
   };

   app.use(cors(corsOptions));
   app.use(express.json());

   app.use((req: Request, res: Response, next: NextFunction) => {
     console.log(`${req.method} ${req.url} - Request received`);
     next();
   });

   // Routes
   app.use('/api', routes);

   // Add Sentry error handler AFTER all routes
   Sentry.setupExpressErrorHandler(app);

   // Custom error handler goes AFTER Sentry's error handler
   app.use((err: Error, req: Request, res: Response, _next: NextFunction) => {
     console.error('Unhandled error occurred:', err.message, err.stack);

     res.status(500).json({
       error: 'Something broke!',
       message:
         process.env.NODE_ENV === 'development'
           ? err.message
           : 'Internal Server Error',
     });
   });

   const startServer = async () => {
     try {
       console.log('🚀 Starting server...');

       // Start server
       console.log('About to call app.listen on port', PORT);
       app.listen(PORT, () => {
         console.log('✅ Server is running on port', PORT);
         console.log(`🔗 Allowed frontend origin: ${FRONTEND_URL}`);
       });
     } catch (startupError: any) {
       console.error(
         '❌ Failed to start server:',
         startupError.message,
         startupError.stack
       );
       process.exit(1);
     }
   };

   startServer();

   Middleware Order Is Critical

   1. Import ./instrument first (before any other imports)
   2. Set up your routes
   3. Add Sentry.setupExpressErrorHandler(app) after routes
   4. Add your custom error handlers after Sentry’s error handler

   This ensures Sentry captures all errors before your custom handlers process them. Also note the 'sentry-trace' and 'baggage' headers in CORS config - these are required for distributed tracing to work between frontend and backend.

4. Add Sentry DSN to environment variables

   Open apps/api/.env and add your Sentry DSN (the file already has DATABASE_URL from the quickstart):

   Adding Sentry DSN to apps/api/.env

   SENTRY_DSN=<Your Backend Sentry DSN>
   DATABASE_URL=postgresql://...

   Tip

   Copy your Backend project’s DSN from Sentry → Settings → Projects → [Your Project] → Client Keys (DSN)

5. Test your setup

   Your server should be running already, but if not, start it with:

   Starting the development servers

   cd ../..  # Back to root
   pnpm dev

   Open http://localhost:4173 and browse around. You should see transactions flowing into both Sentry projects.

Verify Your Setup

Before moving on, let’s confirm everything is working:

• Frontend transactions appear in Sentry Performance view with route names (e.g., /products/:id)
• Backend transactions appear in Sentry Performance view
• Session Replays are being recorded (check Replays tab in frontend project)
• Console logs appear in Sentry traces and replays (check the console tab in any trace)
• Error boundary is set up and routing errors are captured
• Both frontend and backend are sending data to Sentry

Having issues? Check that:

• Environment variables are set correctly in both .env files
• instrument.ts is imported first in both main.tsx and index.ts
• Your dev servers are running (pnpm dev from root)

What’s Next?

With Sentry instrumented and data flowing, you’re ready to start identifying and fixing performance issues. In the next module, we’ll dive into Web Vitals optimization.

---

Next up: We’ll identify and fix Web Vitals issues like slow LCP, layout shifts, and render-blocking requests that hurt your conversion rates.
